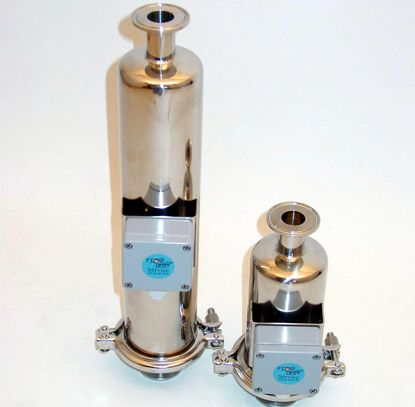

Filter dryers with self-regulating heating elements

RHz-01 and RHz-02


The filter dryers RHz-01 and RHz-02 with self-regulating heating elements were developed for drying filters after testing.

They can be installed everywhere you need without

any additional temperature control.

The heating elements are guaranteed from filter

overheating and any damages.

RHz-01 and RHz-02 filter dryers with PTC heating elements  can be steamed in-line.

Technological process of RHz-01 and RHz-02

Capsule Filter Dryer Rhz-01 with PTC heating elements

Filter Dryer Rhz-02 with PTC heating elements for standard filters

Filter Dryer Rhz-02 with PTC heating elements for standard filters


For the drying procedure, a capsule is fixed to the filter dryer elbow holder (TC-50.5 mm).

The pressure tube is clicked at the filter housing foot and the filter dryer will be connected to the Power Supply System.

A capsule will be steamed through the hot air (ca. 80°C) via a sterile filter at the bottom of the filter housing.

A flow from the sterile filter is very effective because the PTFE material repels water in the filter inlet´s direction.


Electrical supply Data: 230V/ 1200Watt

Power supply during the operation: 200 Watt

Filter drying time: ca.20 min.

Filter Dryer Rhz-02 with PTC heating elements for standard filters

Filter Dryer Rhz-02 with PTC heating elements for standard filters

Filter Dryer Rhz-02 with PTC heating elements for standard filters


For the drying procedure, PFA-tube with Stäubli RBE

03 connector connects to the filter housing at the top.

The pressure tube connects to the filter housing foot and the filter dryer connects to the Power Supply System (See picture).

The hot air (ca.80°C after airflow) goes through the

PFA-tube to the filter dryer housing.

The heating element protects the filter against its

overheating.

Due to the pressure control at the bottom side of the filter housing, the optimal flow can be regulated.

Due to the filter housing design, the filter drying procedure for one 10" filter cartridge takes ca. 40 min.


Electrical supply Data: 230V/ 2200Watt

Power supply during the operation: 300 Watt

Download the brochure

Brochure FIilter dryers with self-regulating heating elements (pdf)Herunterladen
Drying of capsules and filter cartridges after the WIT (pdf)Herunterladen

Rhz-01 and RHz-02
